BUILT TO PRINT HINGES

ALARIN AIRCRAFT HINGE has focused exclusively on manufacturing aircraft hinges for over 25 years. Our depth of experience has allowed us to fully serve the aerospace industry's leading customers. Our engineering staff has decades of experience transforming these customers' drawings into high-quality precision parts. Our equipment includes custom machines which were designed and built by Alarin specifically to manufacture close-tolerance aircraft hinges. Combining this specialized hinge milling and drilling equipment with multi-axis CNC and conventional manufacturing equipment, we are able to offer our customers a wide range of capabilities that meet their specific requirements for build-to-print aircraft hinges and assemblies.

Alarin manufactures aircraft hinges from many materials including; aluminum, aluminum bronze and similar alloys, stainless steel, steel alloys, titanium and other aerospace metals. We are experienced with these materials in all forms including extrusions, bar stock, plate, forgings and castings.

As detailed on our Products page, applications for hinges manufactured by Alarin range from interior applications to flight critical hinges and everything in between. Alarin also has significant experience manufacturing hinges for military applications including the C-130, C-17, F-4 and F-16 platforms. Alarin's operations are in compliance with all DFAR, EAR and ITAR requirements.

The following gallery shows examples of both our hard-alloy and light-alloy build-to-print experience. Please contact us to discuss how we can meet your requirements.

Click to enlarge

HARD-ALLOY BUILD-TO-PRINT

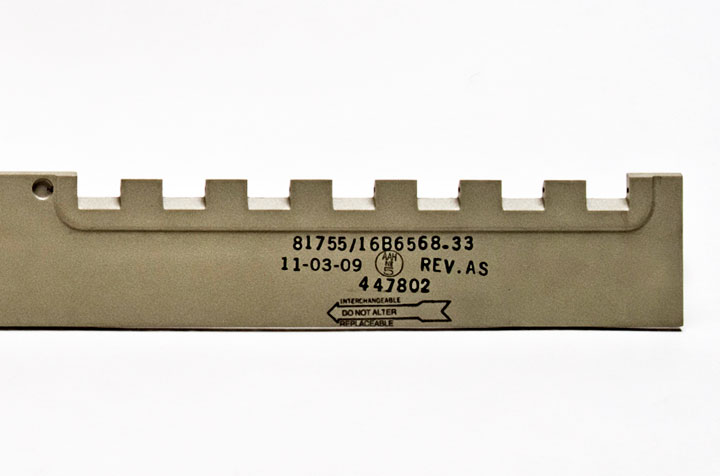

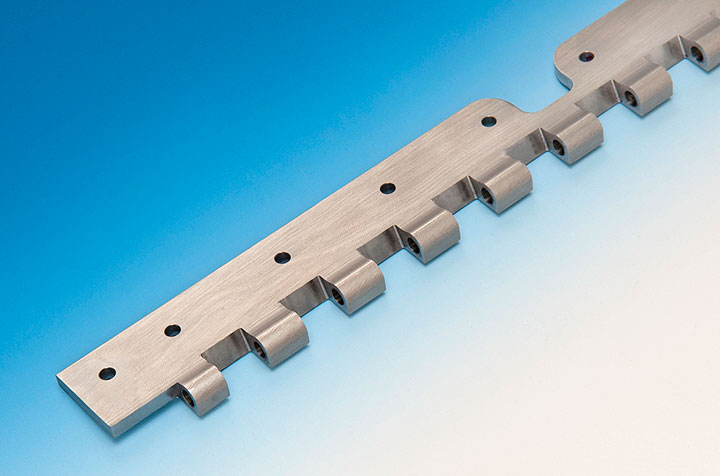

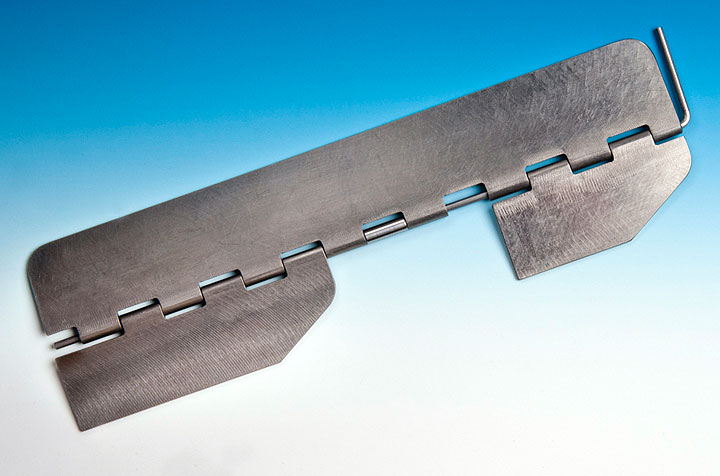

CARGO DOOR HINGE MANUFACTURED FROM 15-5PH STAINLESS STEEL		15-5PH HINGE ASSEMBLY		AIR INLET DOOR HINGE
CARGO DOOR HINGE MANUFACTURED FROM 15-5PH STAINLESS STEEL (SHOWN WITHOUT FINISH)		EXHAUST SYSTEM HINGE FROM 15-5PH		DIN STOCK HINGE FROM 4140
BAC ALUMINUM BRONZE APPLICATION (ALTERNATE CONFIGURATIONS)
DOUGLAS HALF HINGE MANUFACTURED FROM 4140 STAINLESS STEEL		HELICOPTER HINGE APPLICATION 15-5 STAINLESS		TITANIUM HINGE

MOVING SURFACE FASTENER FROM 4140					STAINLESS STEEL HALF HINGE















LIGHT-ALLOY BUILD-TO-PRINT
